# Basic Electronic Components for Beginners: An Essential Guide

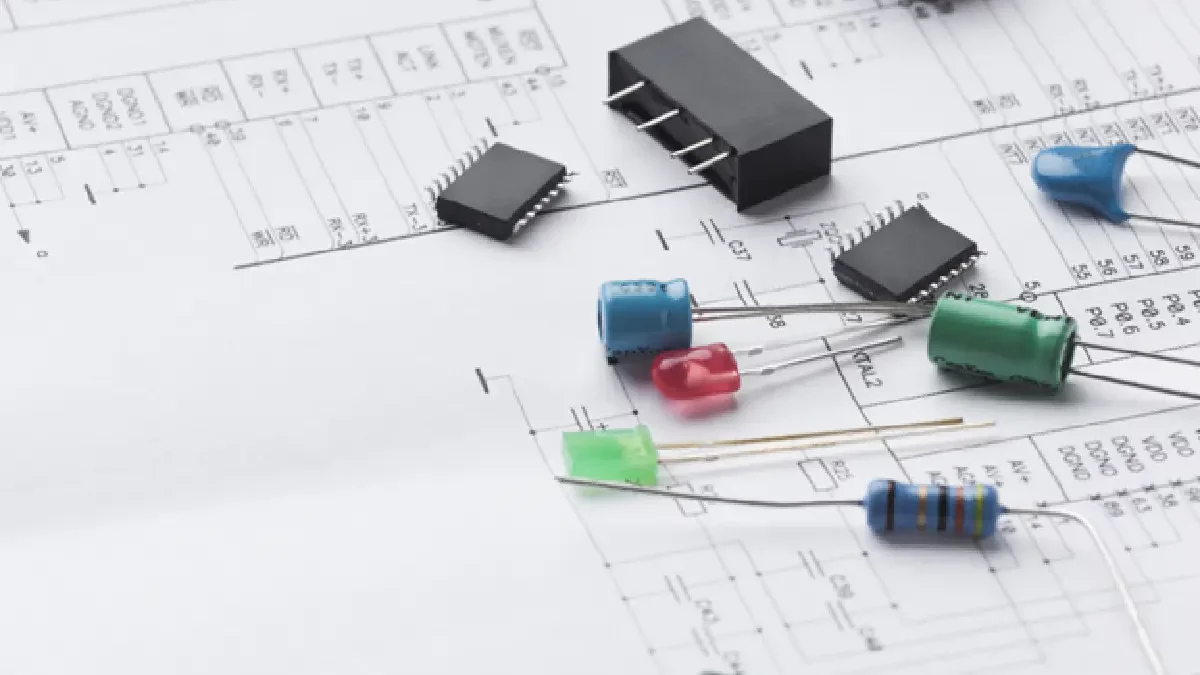

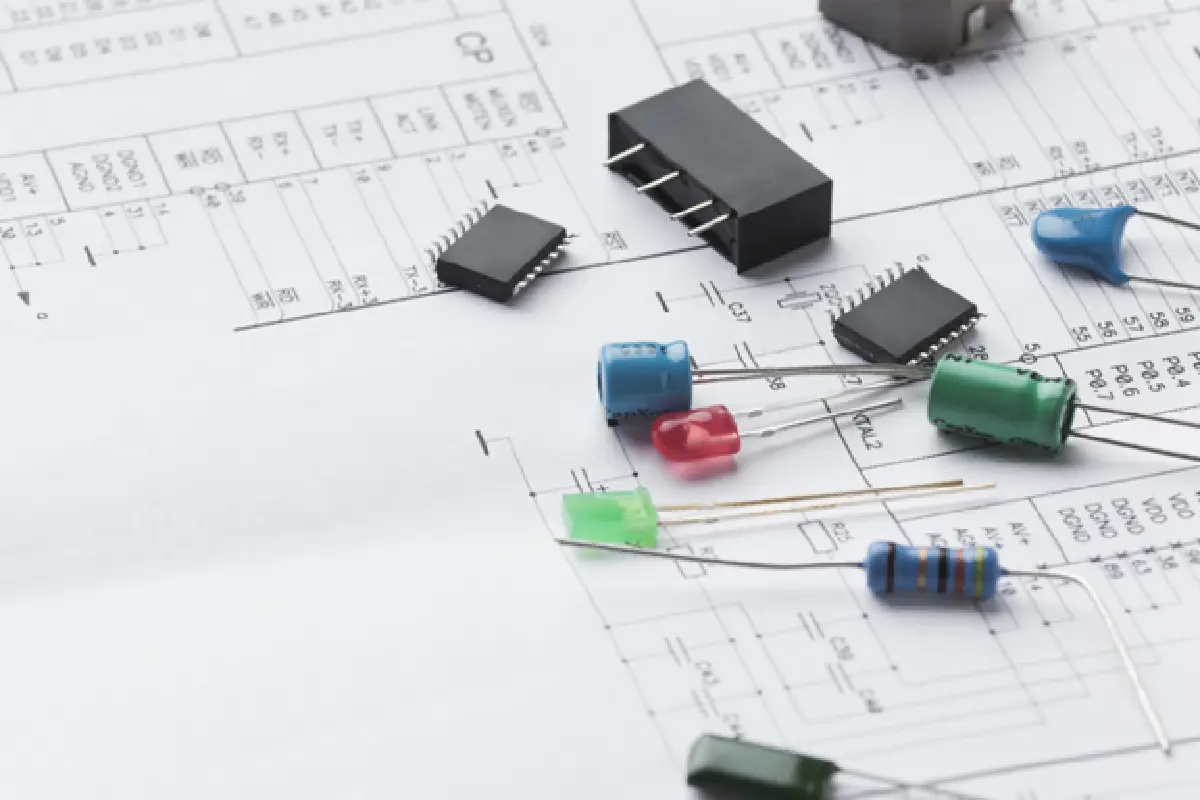

Electronic components can be found in everything from simple gadgets to sophisticated computing systems. These basic components include resistors, capacitors, and transistors among others. For beginners eager to understand the foundation of electronics, gaining knowledge about these components is an essential first step. Each component has a specific function, from regulating current flow to storing energy, and they work in concert within electronic circuits to perform various operations essential for the device’s functionality.

Understanding these components involves learning their characteristics, such as resistance in ohms for resistors, capacitance in farads for capacitors, and current amplification for transistors. A resistor controls current flow, a capacitor stores and releases electricity, and a transistor works as a switch or amplifier. Each part has a special symbol in circuit diagrams, which are key for building or studying electronic circuits.

For beginners in electronics, experimenting with these parts helps learn about circuit design and how they work. Breadboards are great for learning and prototyping because you can easily add or remove parts without soldering. This hands-on method helps understand electronics better and prepares for more advanced learning and projects. Basic electronic parts are not only the building blocks of all electronic devices but also help learners step into the electronics field.

Table of Contents

## Understanding Circuits

In electronic circuits, the interaction between current and voltage defines their capability to perform work, while Ohm’s Law is fundamental for understanding the relationship between these quantities.

### Concept of Current and Voltage

Current refers to the flow of electric charge within a conductor, measured in amperes (A). Voltage, on the other hand, is the electric potential difference between two points, driving the current and measured in volts (V). They are interdependent; without a voltage difference, there is no flow of current, and without a current, the potential difference is not utilized.

### Ohm’s Law

Ohm’s Law states that the current (I) through a conductor between two points is directly proportional to the voltage (V) across the two points and inversely proportional to the resistance (R) of the conductor. It is concisely represented by the equation:

[ I = \frac{V}{R} ]

Where:

• ( I ) is the current in amperes (A),
• ( V ) is the voltage in volts (V),
• ( R ) is the resistance in ohms (Ω).

This law is crucial for designing and analyzing circuits, ensuring components operate within their intended specifications.

## Resistors

Resistors are crucial components in electronic circuits, used to control current flow and divide voltages. Understanding their characteristics and identification is key for anyone interested in electronics.

### Types of Resistors

Electronic components manufacturers produce a variety of resistors, each suited for different applications:

• Fixed Resistors: The most common type with a set resistance value.
• Variable Resistors: Resistance can be adjusted, such as in a potentiometer or rheostat.
• Thermistors: Their resistance changes with temperature.
• Photoresistors: Light intensity alters their resistance.

Each type serves its purpose in a circuit depending on the required control or sensitivity to environmental changes.

### Resistor Color Coding

Resistors often use color bands to indicate their value and tolerance/ A resistor with four bands, for instance, the first two bands represent the first two digits of the resistance value, the third is the multiplier, and the fourth is the tolerance. A five-band resistor includes a third digit, offering greater precision.

## Capacitors

Capacitors are fundamental electronic components used for storing and releasing electrical energy in a circuit. They play vital roles in filtering, timing, and coupling applications across various electronic devices.

### Capacitor Functions

Capacitors serve several key functions in electronic circuits:

• Energy Storage: They store electric charge when connected to a power source and release it as needed.
• Voltage Filtering: Capacitors smooth out voltage fluctuations by absorbing and releasing charge, thus aiding in noise reduction and voltage stabilization in power supplies.
• Signal Coupling: They are used to transmit AC signals between circuit stages while blocking DC components.
• Timing Elements: In combination with resistors, capacitors form RC circuits that are used to create time delays or shape pulse signals.

### Types of Capacitors

There are various types of capacitors, each suited for specific applications:

• Electrolytic Capacitors: Known for their high capacitance values, these are polarized and often used in power supply circuits.
• Ceramic Capacitors: Non-polarized and compact, they are commonly used for high-frequency applications, such as in RF circuits.
• Film Capacitors: These are known for their stability and reliability, used in applications where long-term stability is critical.
• Tantalum Capacitors: With high capacitance per volume, tantalum capacitors are used where size is a constraint and reliability is important.

Different types of capacitors vary in terms of material, construction, and characteristics, such as capacitance range, working voltage, and temperature stability. Selecting the appropriate type depends on the specific requirements of the electronic circuit.

## Inductors

Inductors, also known as coils or reactors, are fundamental electronic components that store energy in a magnetic field when electrical current flows through them. Find the highest quality inductors and other electronic components via electronic components distributors such as ICRFQ at affordable rates.

### Basics of Inductance

Inductance is the property of an inductor that quantifies its ability to resist changes in electric current. Its unit of measure is the henry (H). An inductor typically consists of a wire wound into a coil, and the strength of the inductance is directly proportional to the number of turns in the coil and the core material. The formula for calculating inductance is L = (N^2 \cdot \mu \cdot A / l), where:

• L is the inductance,
• N is the number of turns,
• μ is the permeability of the core material,
• A is the cross-sectional area of the coil, and
• l is the length of the coil.

Practical inductors may also have parasitic properties, such as resistance and capacitance, that affect their performance in circuits.

### Inductor Applications

Inductors are utilized in a variety of applications within electronic circuits. Key applications include:

1. Filtering: They block high-frequency alternating current (AC) while allowing low-frequency current to pass, thus acting as low-pass filters.
2. Energy Storage: In power supplies and converters, they temporarily store energy when the current is flowing and release it when the demand increases.
3. Chokes: They prevent radio frequency interference (RFI) from affecting the circuit operation.
4. Transformers: Paired with other inductors, they can transfer energy between two circuits while isolating them and adjusting the levels of current and voltage.

Inductors play a critical role in shaping the performance and functionality of modern electronic circuits.

## Semiconductors

Semiconductors are materials with conductivity between conductors and insulators. They are the foundation for modern electronics, serving as the building blocks for components that control and modify electrical current.

### Diodes

A diode is a semiconductor device that allows current to flow in one direction only. Key characteristics of a diode include:

• Unidirectional Current Flow: It allows current to pass when forward-biased and blocks current when reverse-biased.
• P-N Junction: Construction consists of ‘p-type’ and ‘n-type’ semiconductor materials joined together.

Common Types:

• Rectifier Diodes: Used in converting alternating current (AC) to direct current (DC).
• Zener Diodes: Allow current to flow in reverse after a certain reverse voltage is reached.

### Transistors

Transistors act as switches or amplifiers in electronic circuits. They are vital in controlling the flow of electrical charge. Principal attributes include:

• Current Amplification: Ability to amplify a small input current into a larger output current, making them useful in amplification.
• Switching Applications: Serve as on/off switches in various digital circuits.

Main Categories:

• Bipolar Junction Transistors (BJTs): Comprises emitter, base, and collector regions.
• Field-Effect Transistors (FETs): Rely on an electric field to control the conductivity of a channel.

By understanding semiconductors, one grasps the operational essence of numerous electronic devices and systems.

## Conclusion

Electronics is a field defined by precision and application. Beginners taking their first steps towards understanding electronics have a wealth of components to familiarize themselves with. Capacitors, resistors, and transistors are foundational to creating functional circuits. Inductors, diodes, and integrated circuits must also be understood to grasp the complex interplay that defines electronic circuitry.

Studying these components yields a foundational understanding of electronic design and operation. One should approach this learning journey with patience and a systematic methodology, as mastery of these building blocks is essential for innovation in technology.

Remember, consistent practice and application of theory to real-world projects will solidify one’s knowledge and skill in electronics. They build a strong platform from which to explore the vast, ever-evolving landscape of electronic technology.
